Application: 2P/4P Core Element: MOV 34S Surge: T2: 20/40 kA Types: 241k / 431k / 511k / 621k

For AC High Energy System Patented Tripping Mechanism Network Configurations: 2 /1+1 Jumper/ 3 / 4 / 3+1 Jumper Core Element: MOV33D+ GDT/ MOV42S+ GDT Surge(T1+T2): 60/120kA(8/20us) / 25.0kA*(10/350us) Surge(T2): 80/150kA(8/20us) Types: 241k / 431k / 711k

Structure: OBO Fasten Explosion Proof Network Configurations: 1P、2P、3P、4P、3+NPE Core Element: MOV 33D Surge: 20/40kA (8/20us)

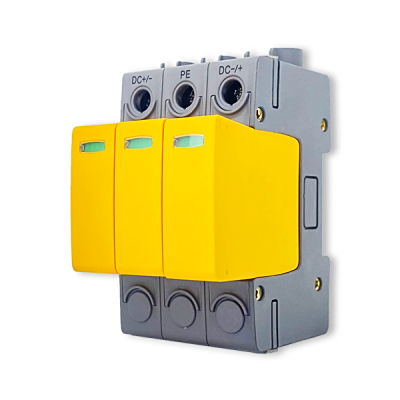

For PV System Patented Tripping Mechanism Network Configurations: 3P Core Element：MOV 54S Surge(T1+T2): 20/60kA(8/20us) / 4.0kA*(10/350us) Surge(T2): 30/60kA(8/20us) Types: 431k / 621k / 711k / 751k / 821k / 951k / 102k / 112k

For PV System Patented Tripping Mechanism Network Configurations: 3P Core Element：MOV 34S Surge(T1+T2): 20/40kA(8/20us) / 2.0kA*(10/350us) Surge(T2): 20/40kA(8/20us) Types: 431k / 621k / 711k / 751k / 821k / 951k / 102k / 112k

For AC System High Discharge Current Network Configurations: 1+1Jumper'、3+1Jumper Core Element：MOV 48S Surge(T1+T2):20/60kA(8/20us) / 5~10kA*(10/350us) Surge(T2): 40/80kA(8/20us) Types: 241k / 431k / 511k / 621k / 711k / 911k / 122k

For AC System High Discharge Current Network Configurations: 1P、2P、3P、4P、3+NPE Core Element：MOV 34S Surge(T1+T2): 20/40kA (8/20us) / 5kA(10/350us) Surge(T2): 20kA/ 40kA (8/20us)

For AC System High Discharge Current Network Configurations: 1P、2P、3P、4P(3+N)、3+1P Core Element：MOV 48S Surge(T1+T2):20/60kA(8/20us) / 5~10kA*(10/350us) Surge(T2): 40/80kA(8/20us) Types: 241k / 431k / 511k / 621k / 711k / 911k / 122k

For AC System Network Configurations: 1 / 2 / 3 / 4 / 1+1 / 3+1 / 1+1Jumper / 3+1Jumper Core Element: MOV 34S Surge(T1+T2): In:20kA/Imax:60kA(8/20us) / Iimp7.5kA*(10/350us) Surge(T2): 20/40kA or 30/60kA(8/20us) Types: 241k / 431k / 711k / 911k / 122k

For AC System Explosion Proof Network Configurations: 1P、2P、3P、4P(3+N)、3+1P Core Element: MOV 33D Surge(T2): 20/40 kA Type: 241k / 431k / 711k / 911k / 122k
