D4 Series

D4 Series

For AC System High Discharge Current Network Configurations: 1P、2P、3P、4P(3+N)、3+1P Core Element：MOV 48S Surge(T1+T2):20/60kA(8/20us) / 5~10kA*(10/350us) Surge(T2): 40/80kA(8/20us) Types: 241k / 431k / 511k / 621k / 711k / 911k / 122k

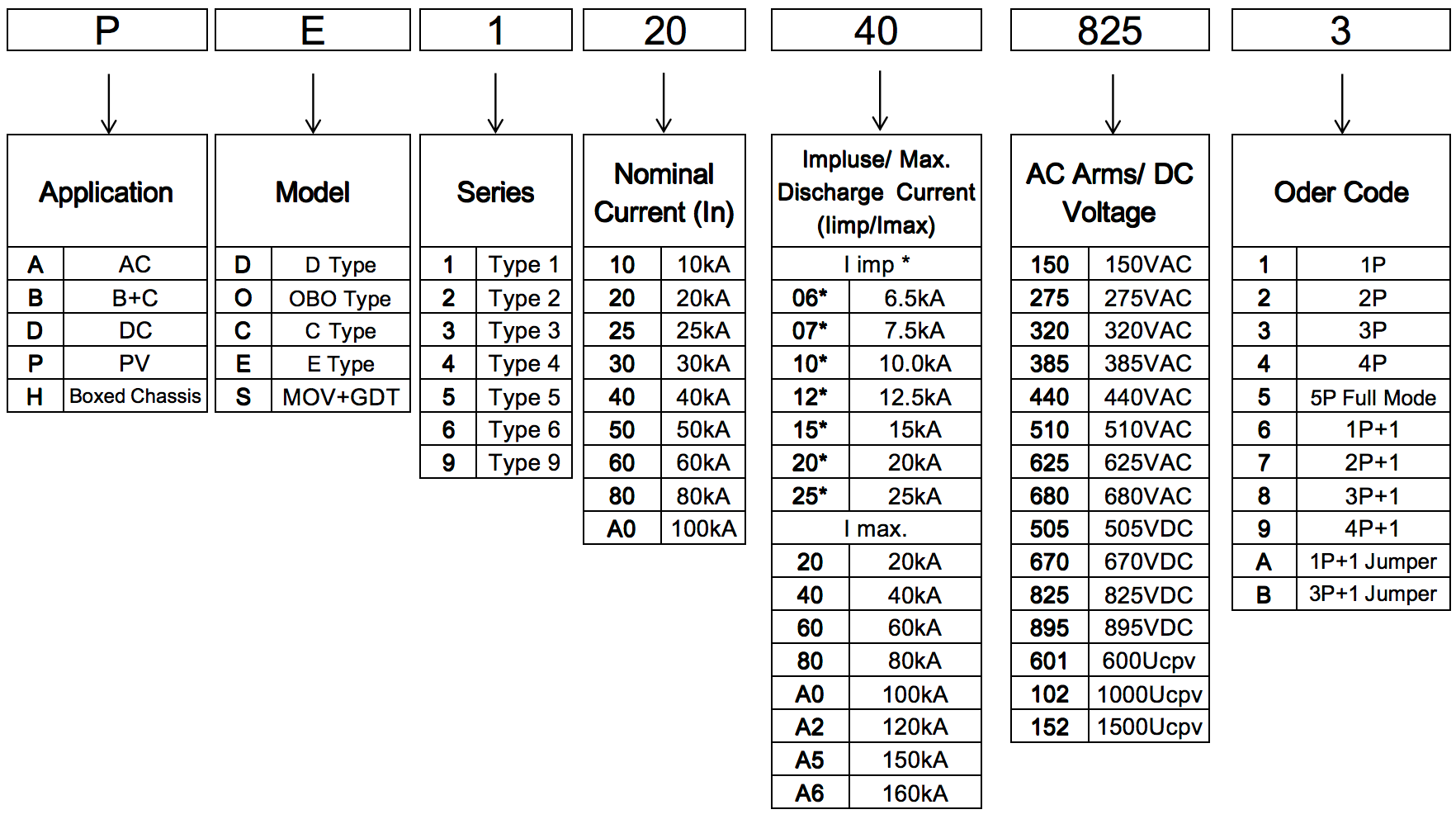

1. Part Number Code

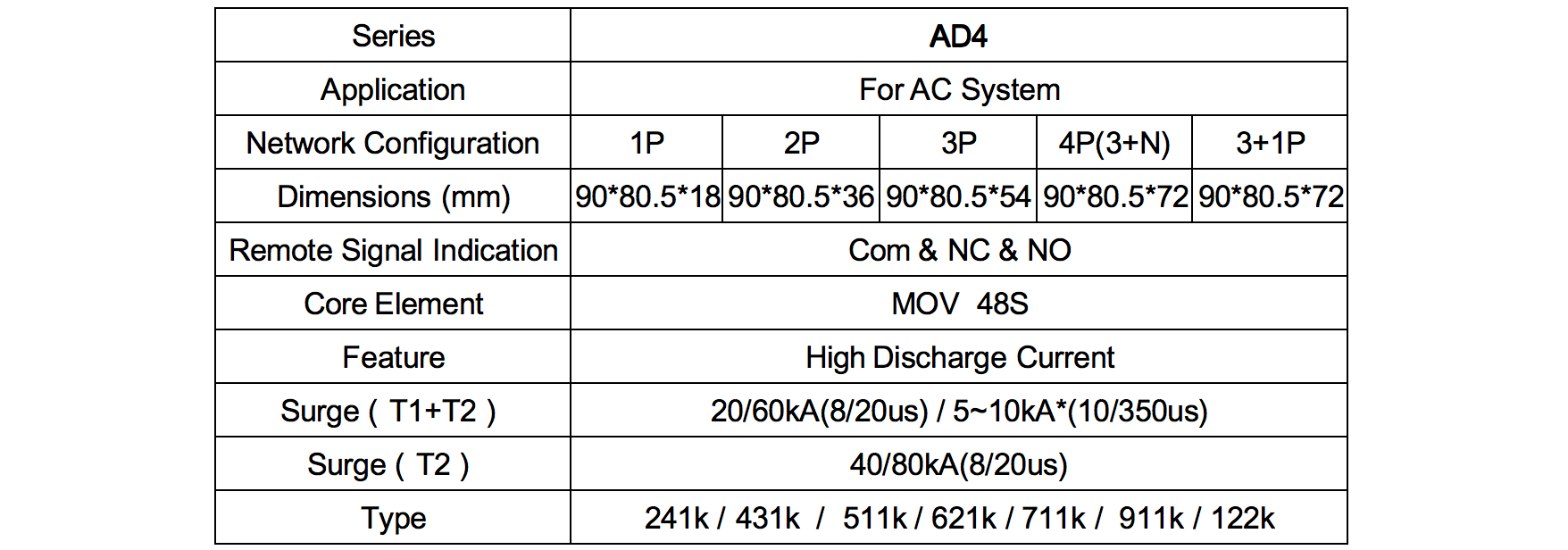

2. Product Specifications

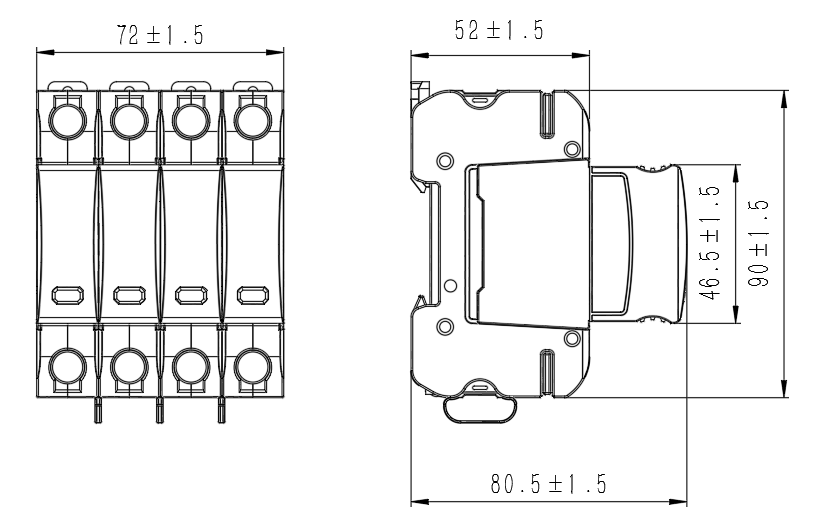

3. Dimensions

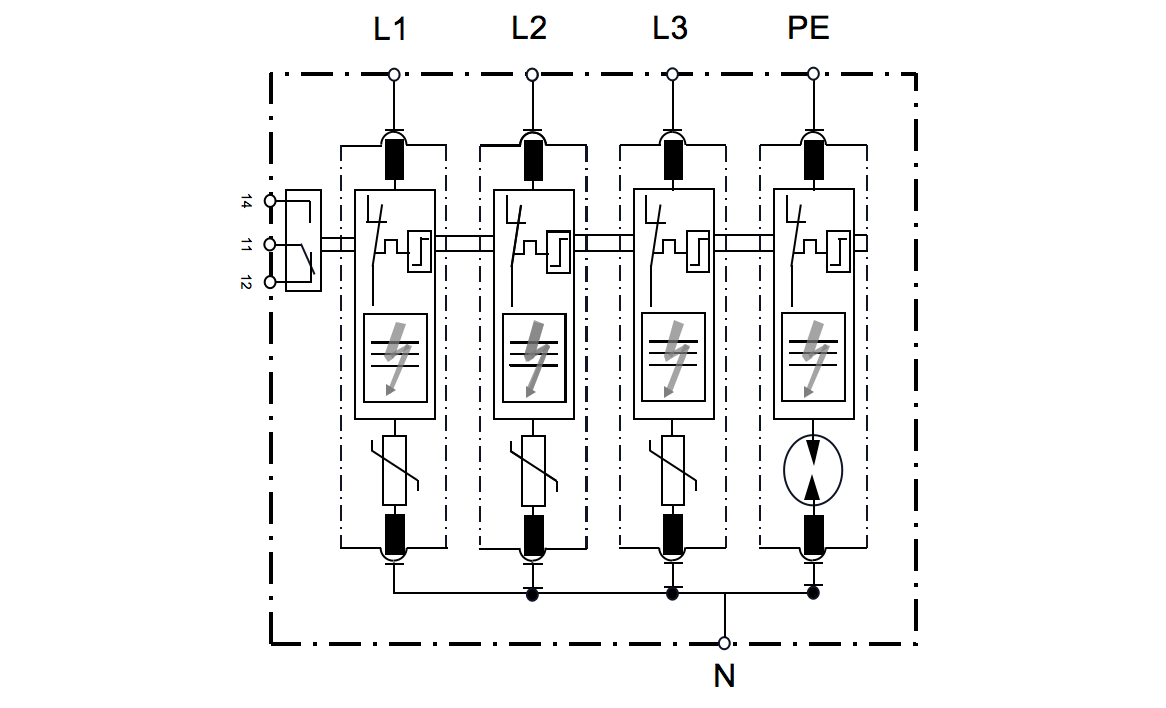

4. Schematic Diagram
