E2 Series

E2 Series

For PV System Patented Tripping Mechanism Network Configurations: 3P Core Element：MOV 54S Surge(T1+T2): 20/60kA(8/20us) / 4.0kA*(10/350us) Surge(T2): 30/60kA(8/20us) Types: 431k / 621k / 711k / 751k / 821k / 951k / 102k / 112k

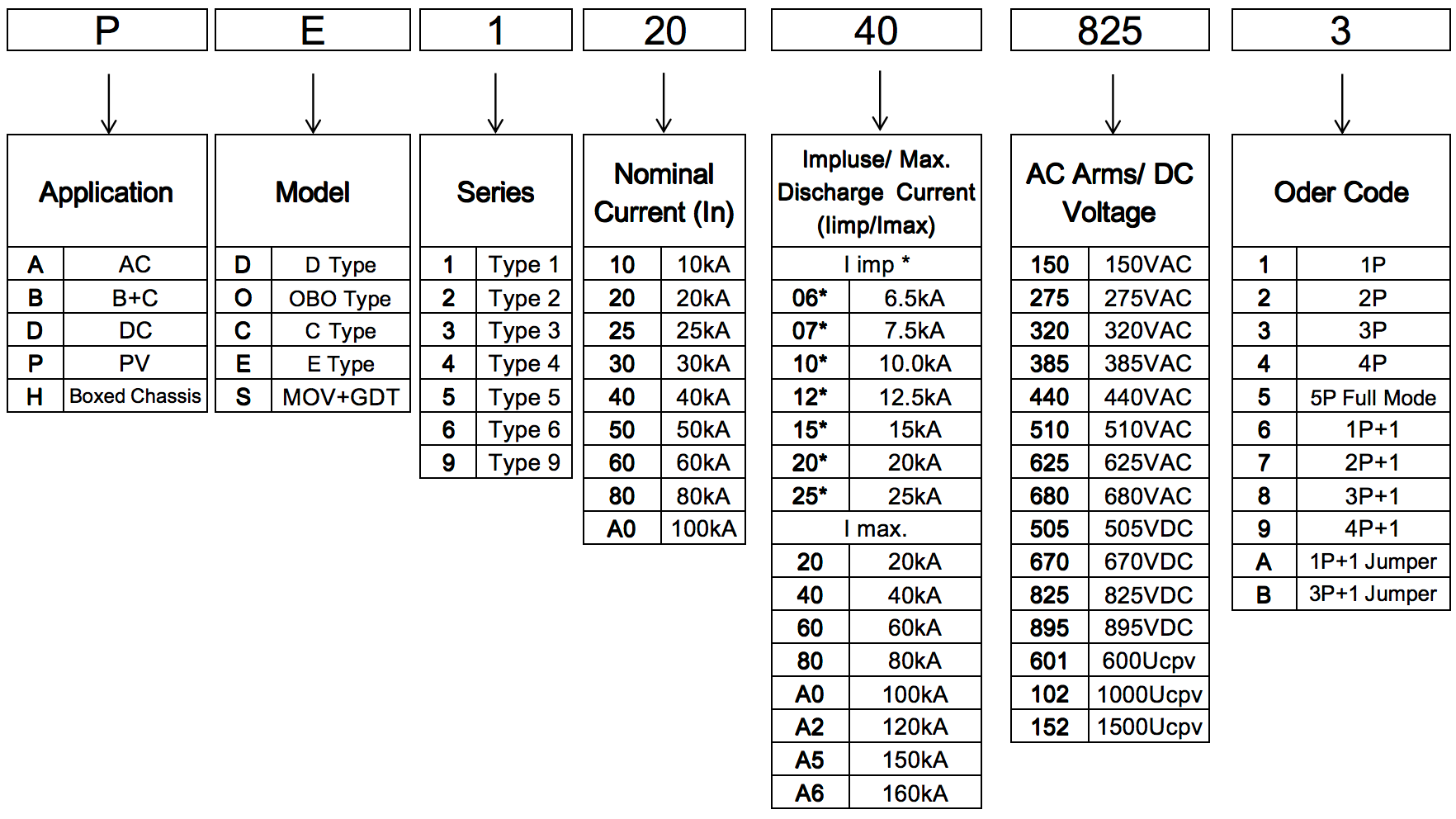

1. Part Number Code

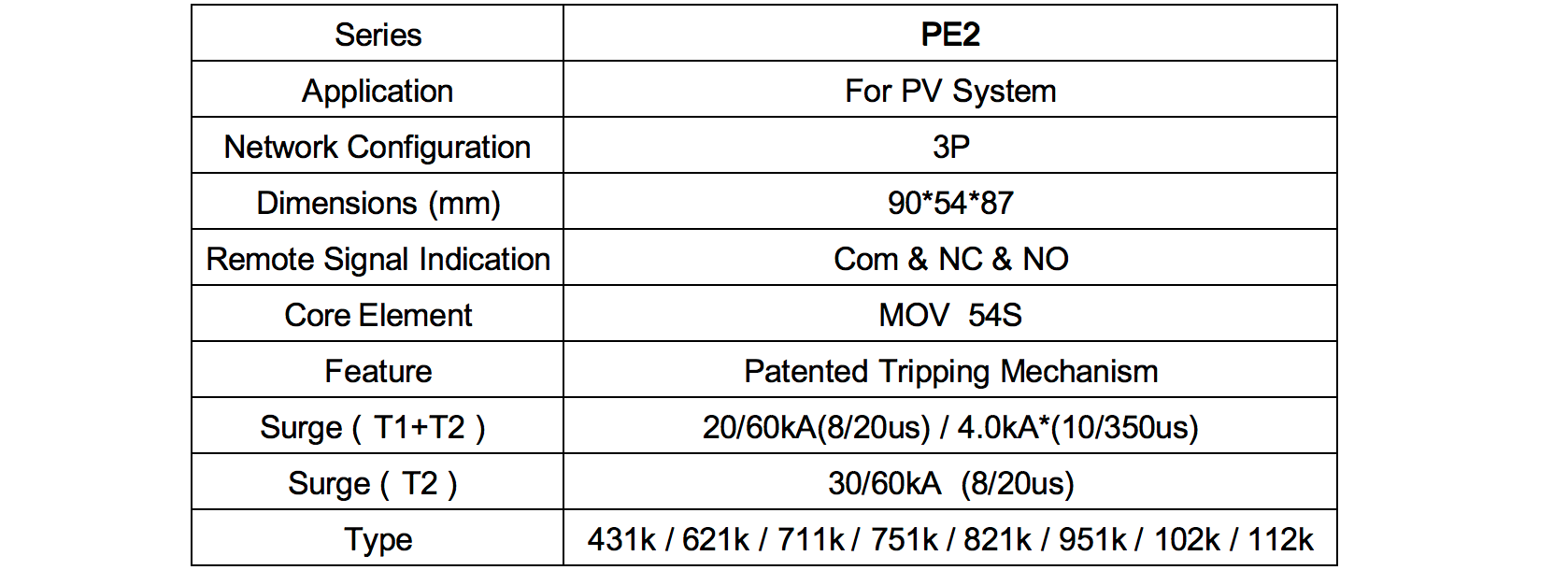

2. Specification

PE2 Specs.png

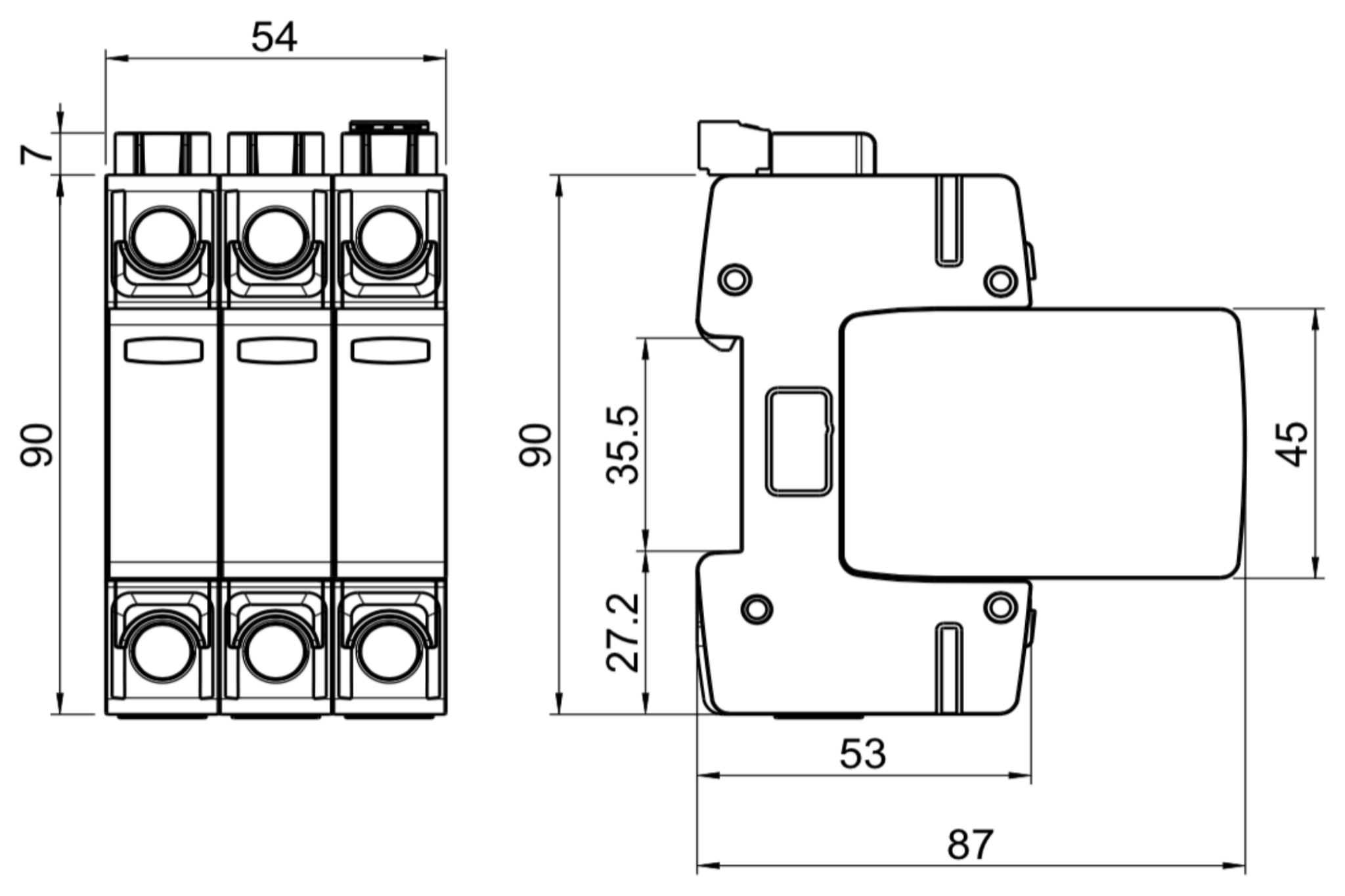

3. Dimensions

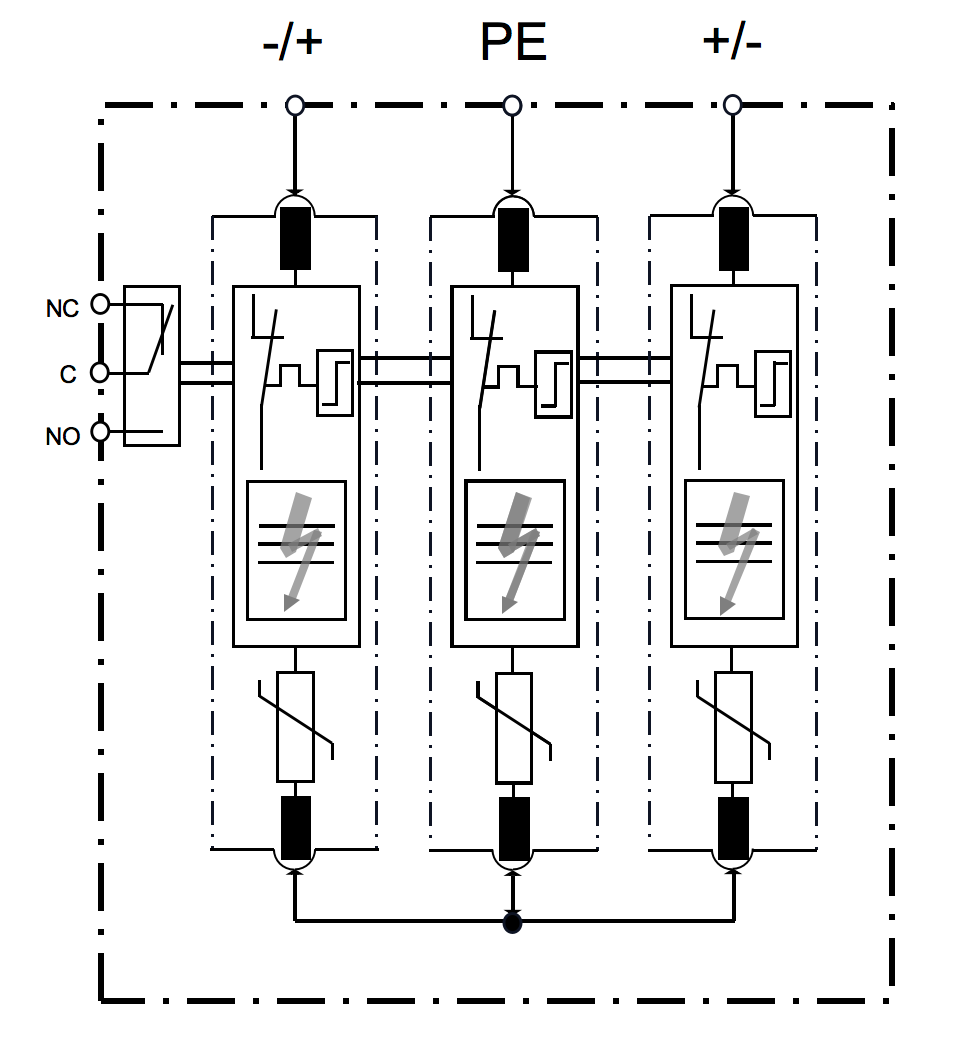

4. Schematic Diagram
