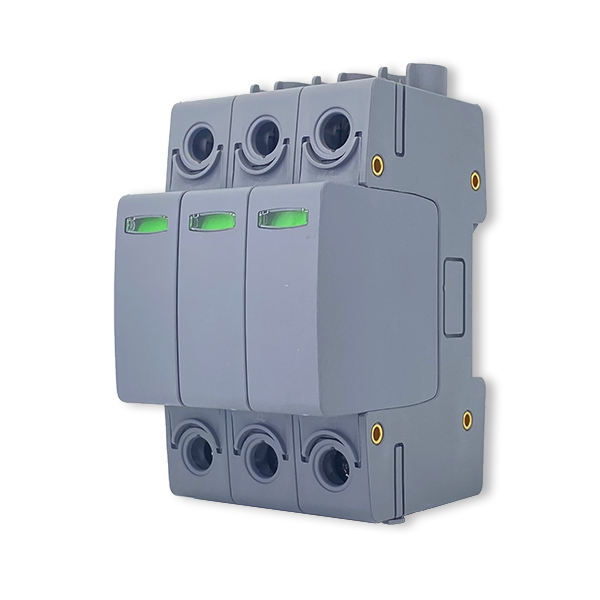

E1 Series

E1 Series

For PV System Patented Tripping Mechanism Network Configurations: 3P Core Element：MOV 34S Surge(T1+T2): 20/40kA(8/20us) / 2.0kA*(10/350us) Surge(T2): 20/40kA(8/20us) Types: 431k / 621k / 711k / 751k / 821k / 951k / 102k / 112k

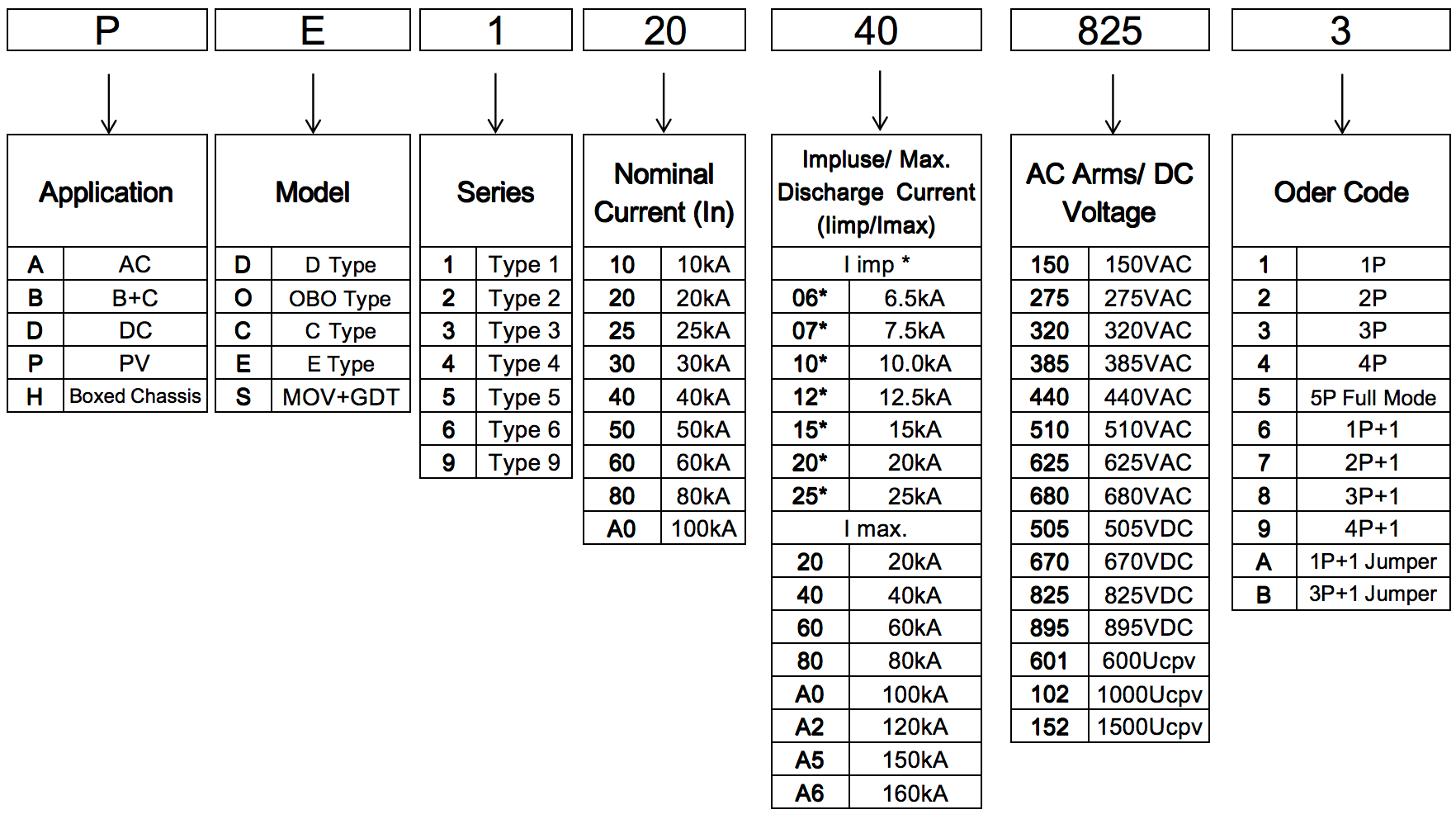

1. Part Number Code

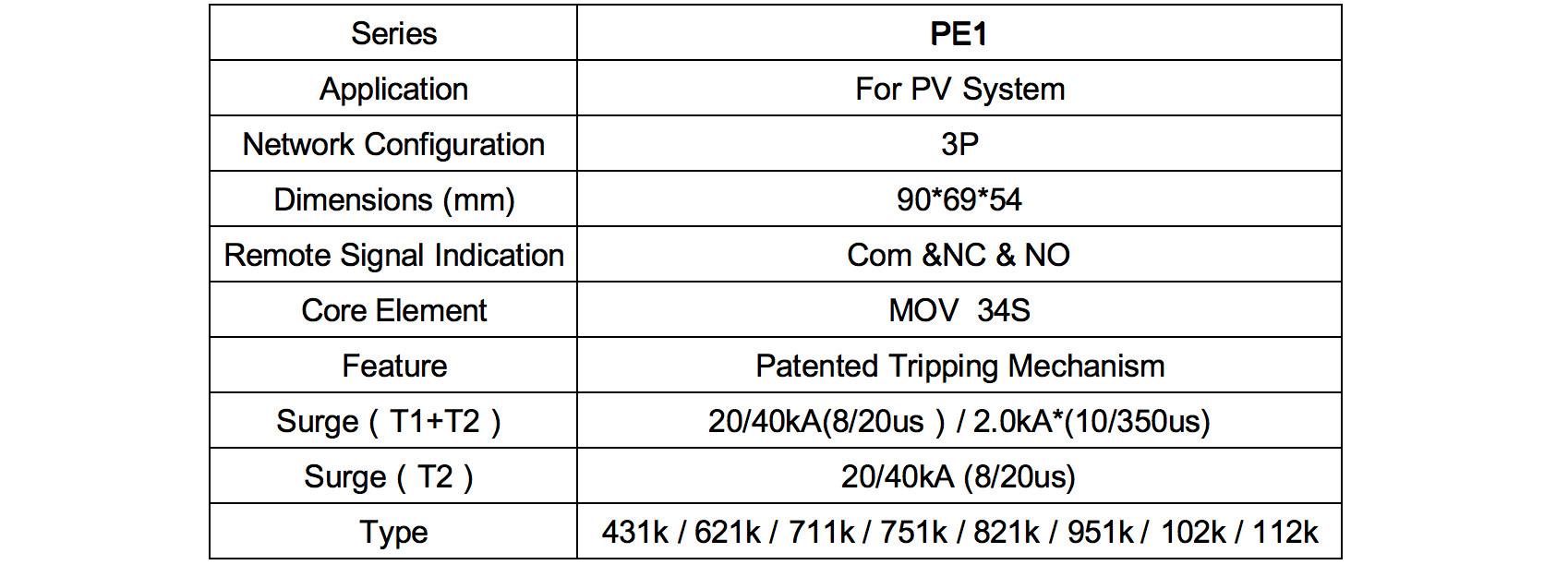

2. Specifications

PE1 Specs.png

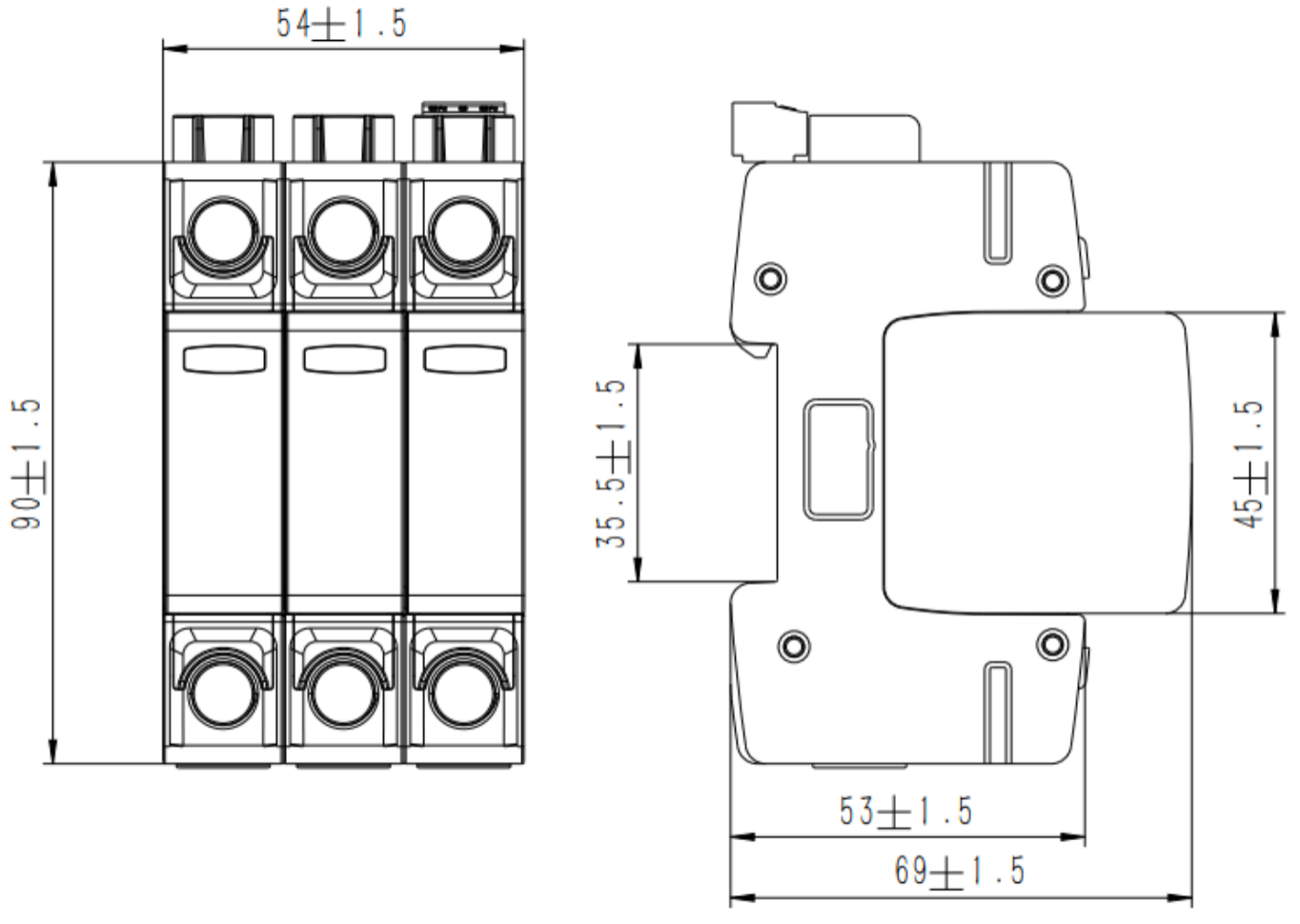

3. Dimensions

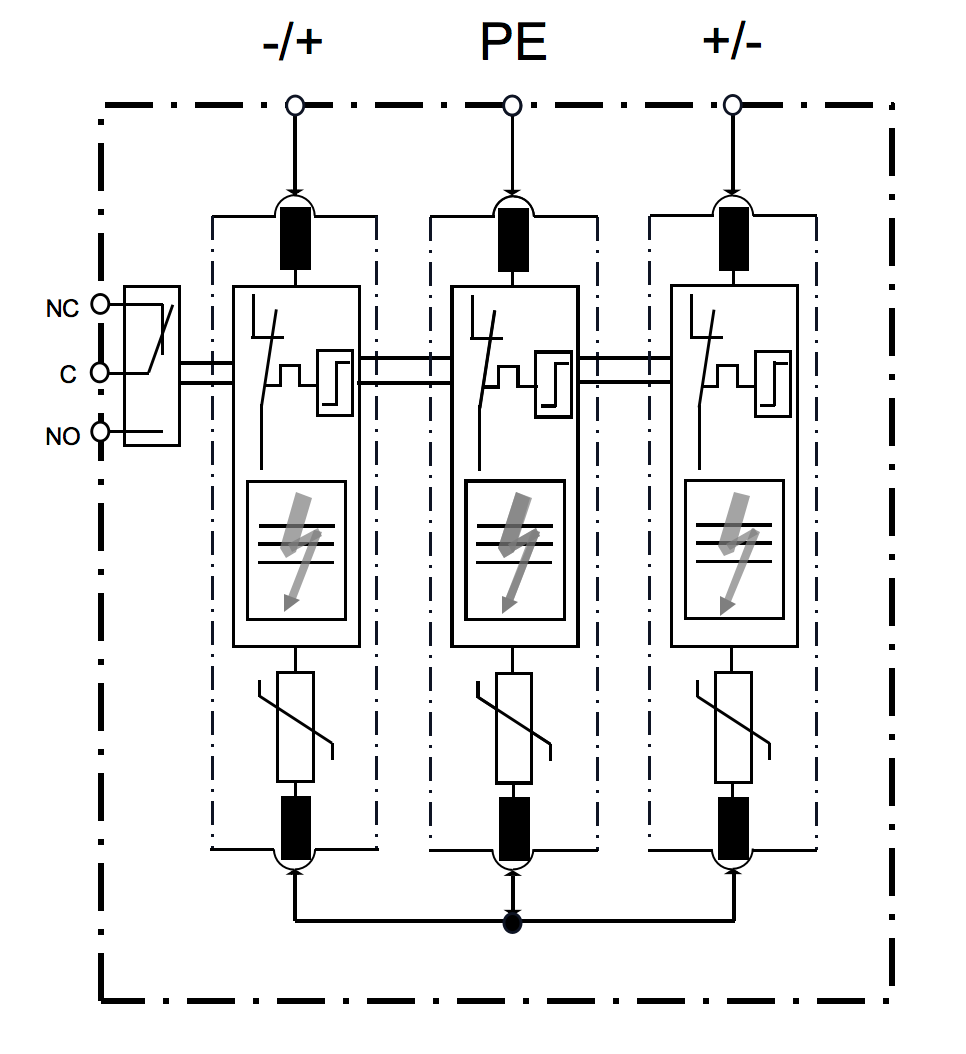

4. Schematic Diagram
