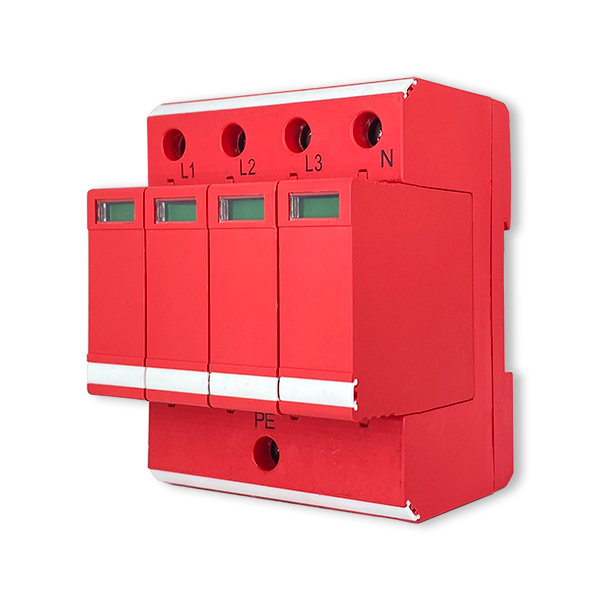

D5 Series

D5 Series

For AC System High Discharge Current Network Configurations: 1P、2P、3P、4P、3+NPE Core Element：MOV 34S Surge(T1+T2): 20/40kA (8/20us) / 5kA(10/350us) Surge(T2): 20kA/ 40kA (8/20us)

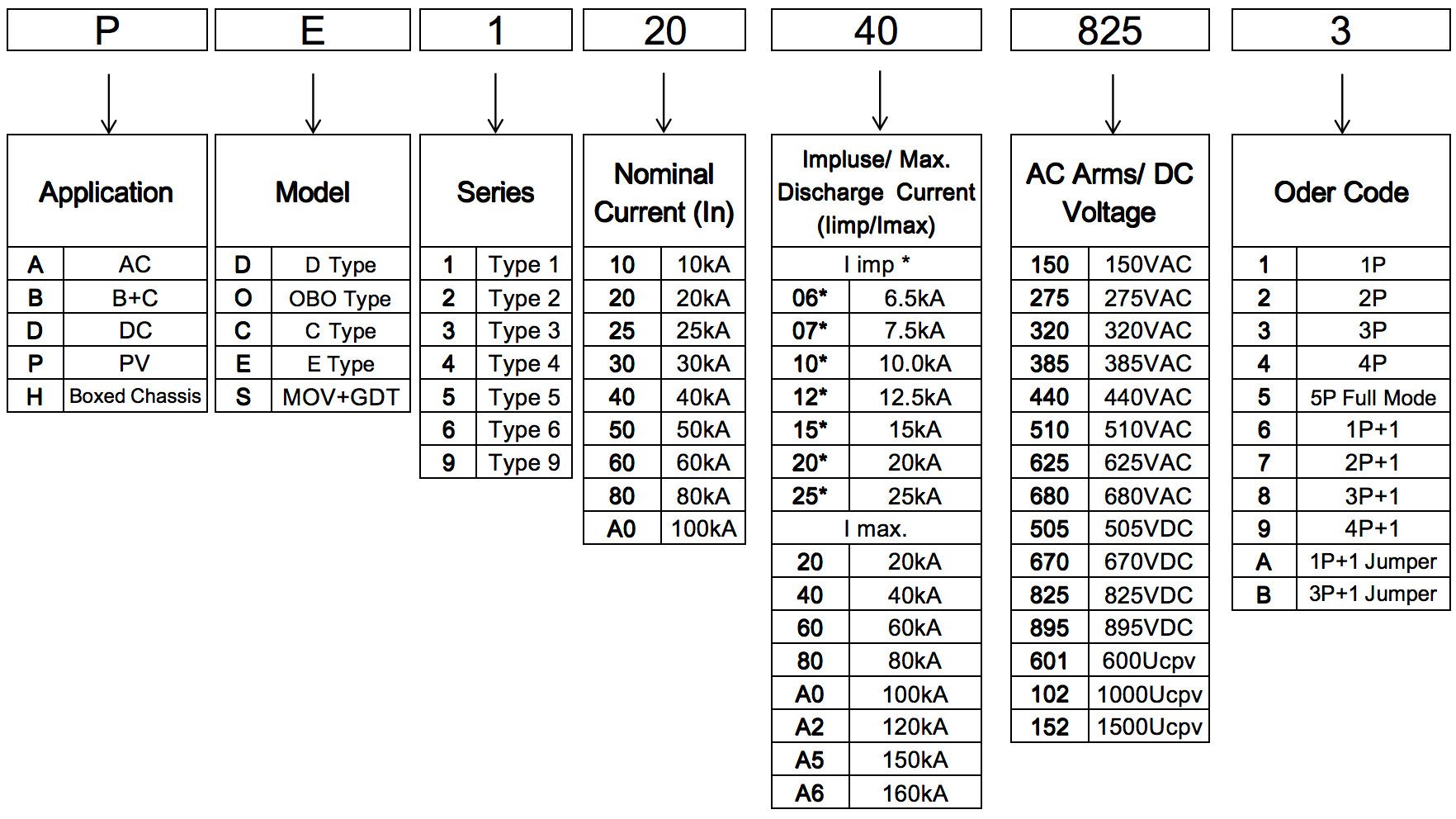

1. Part Number Code

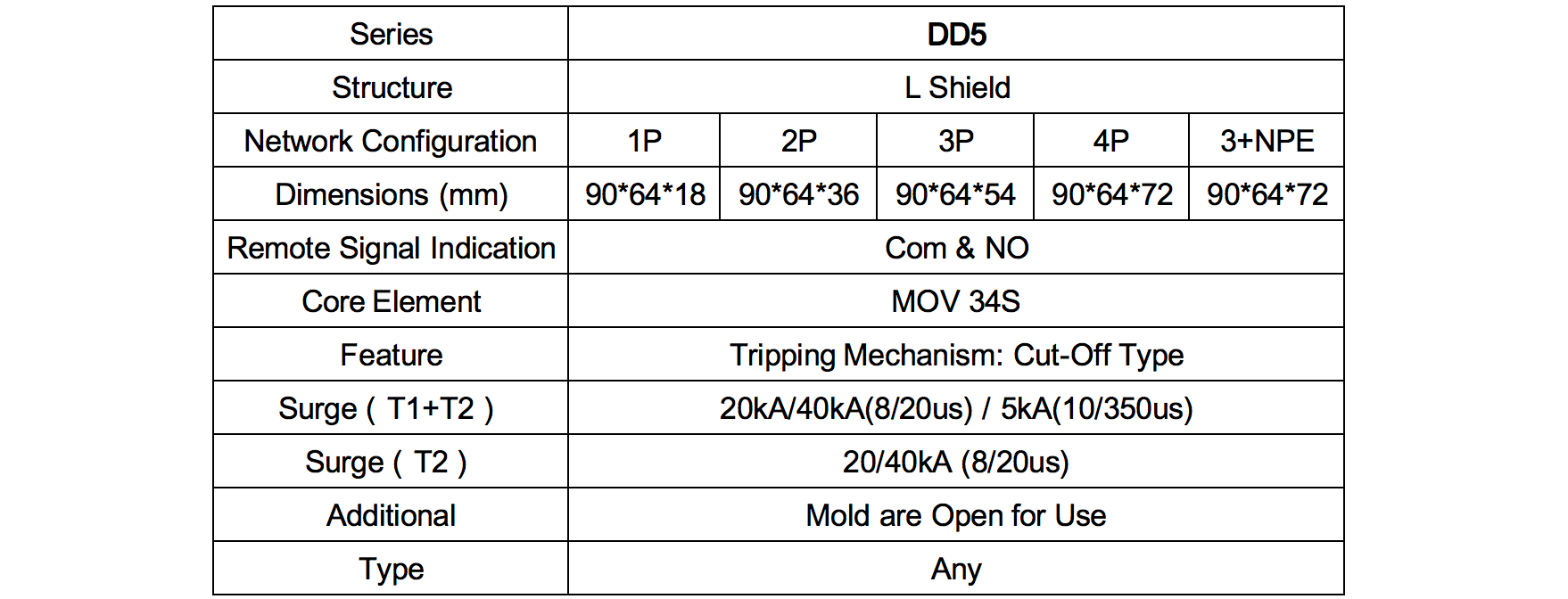

2. Product Specifications


D5 Specs.png

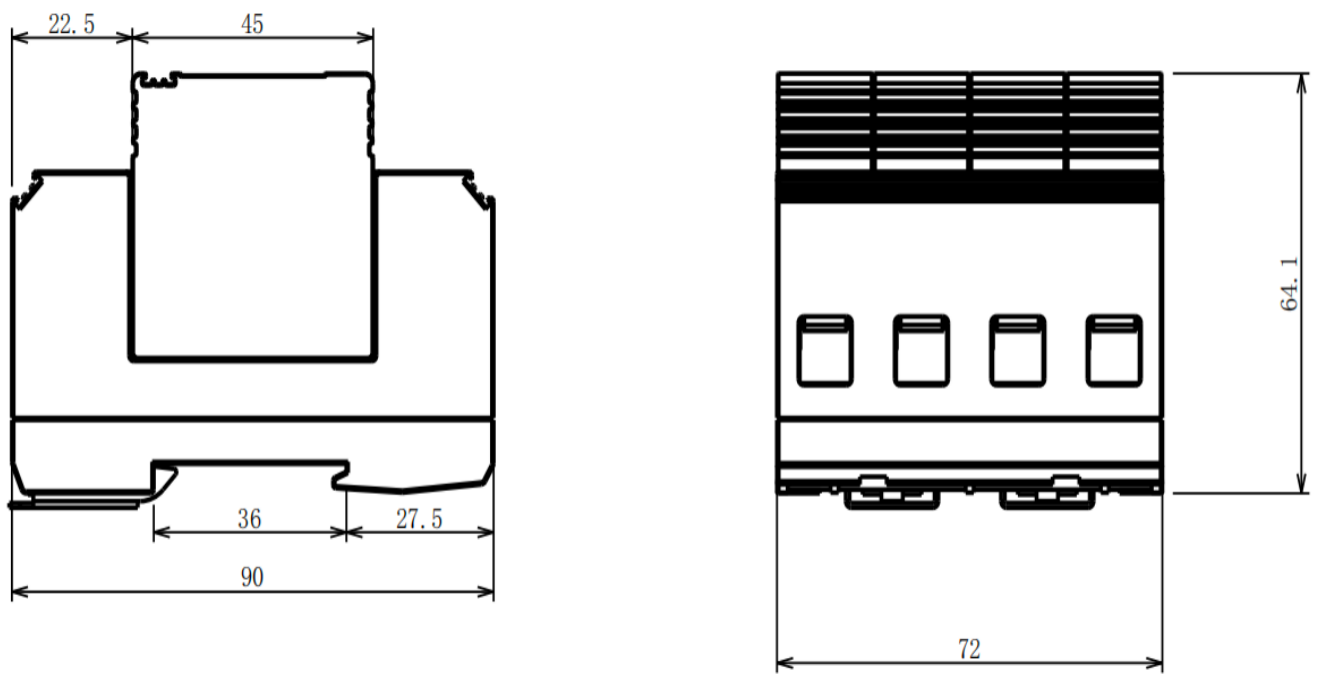

3. Dimensions

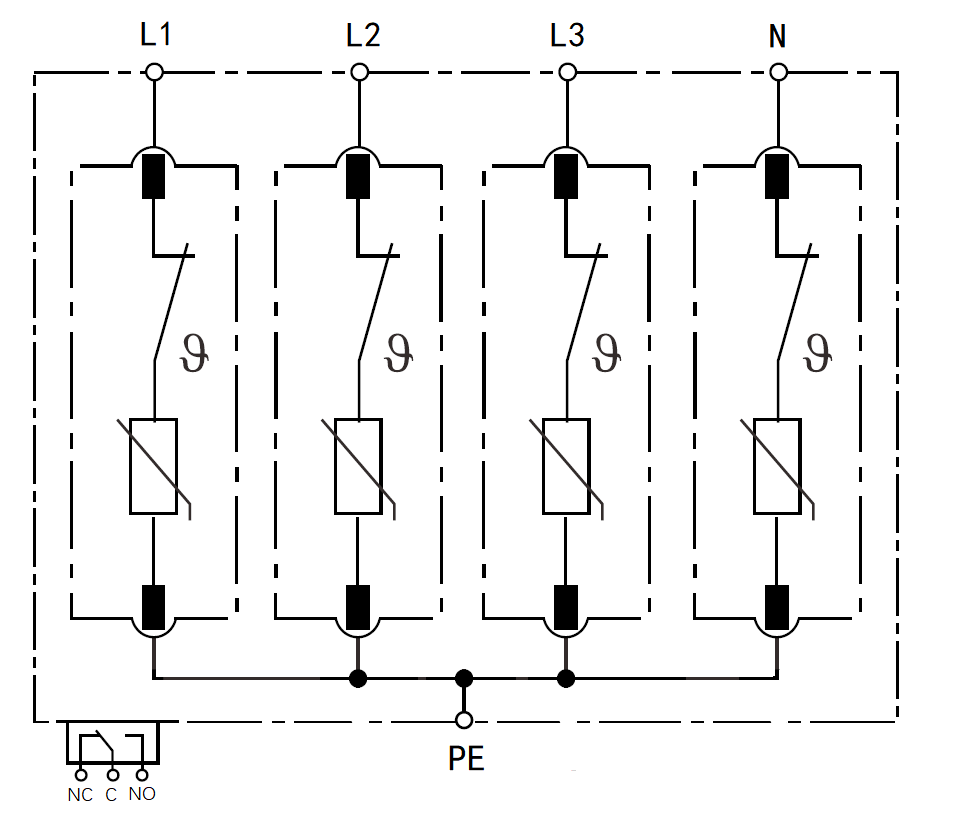

4. Schematic Diagram
