D1 Series

D1 Series

For AC System Explosion Proof Network Configurations: 1P、2P、3P、4P(3+N)、3+1P Core Element: MOV 33D Surge(T2): 20/40 kA Type: 241k / 431k / 711k / 911k / 122k

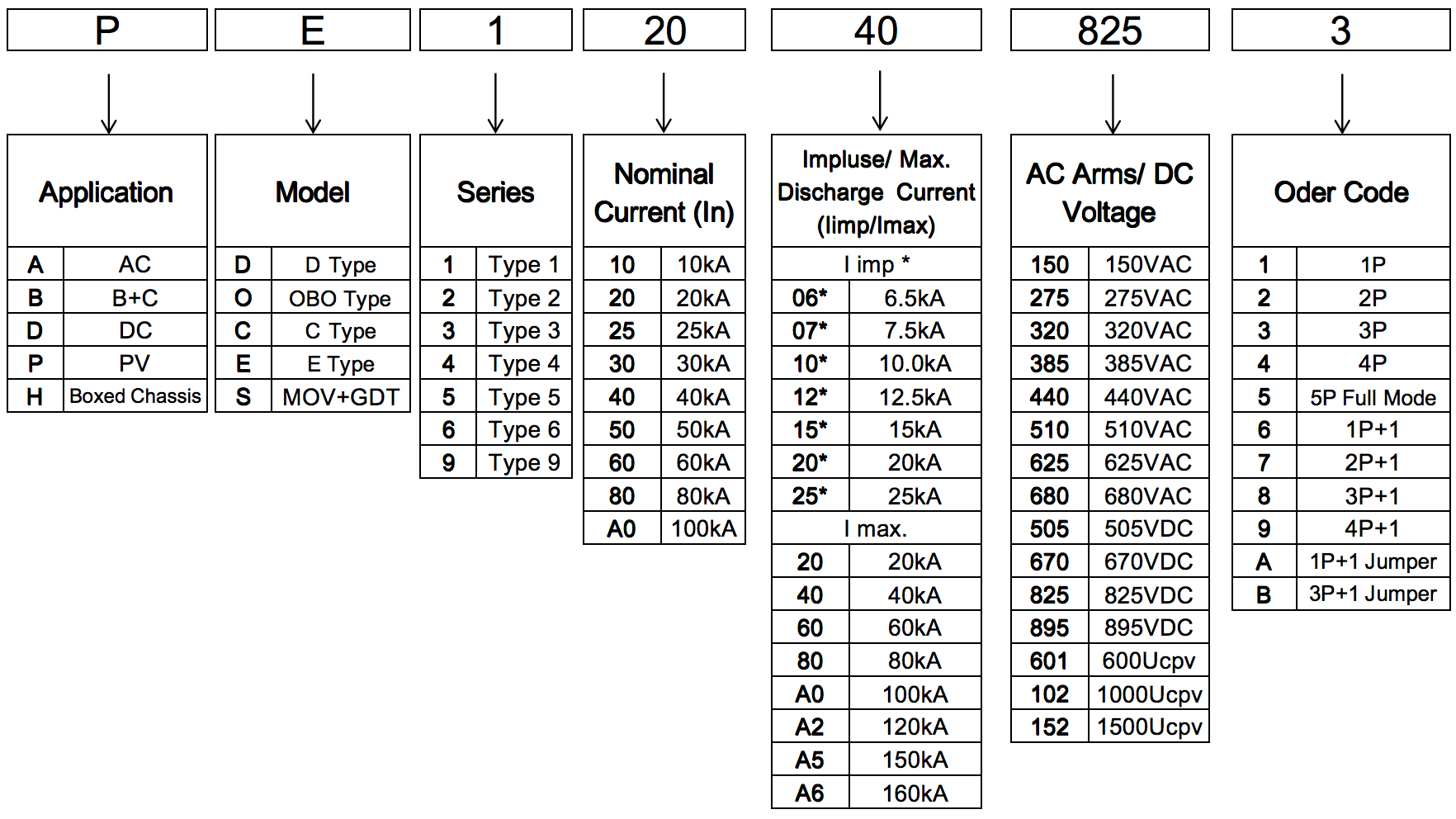

1. Part Number Code

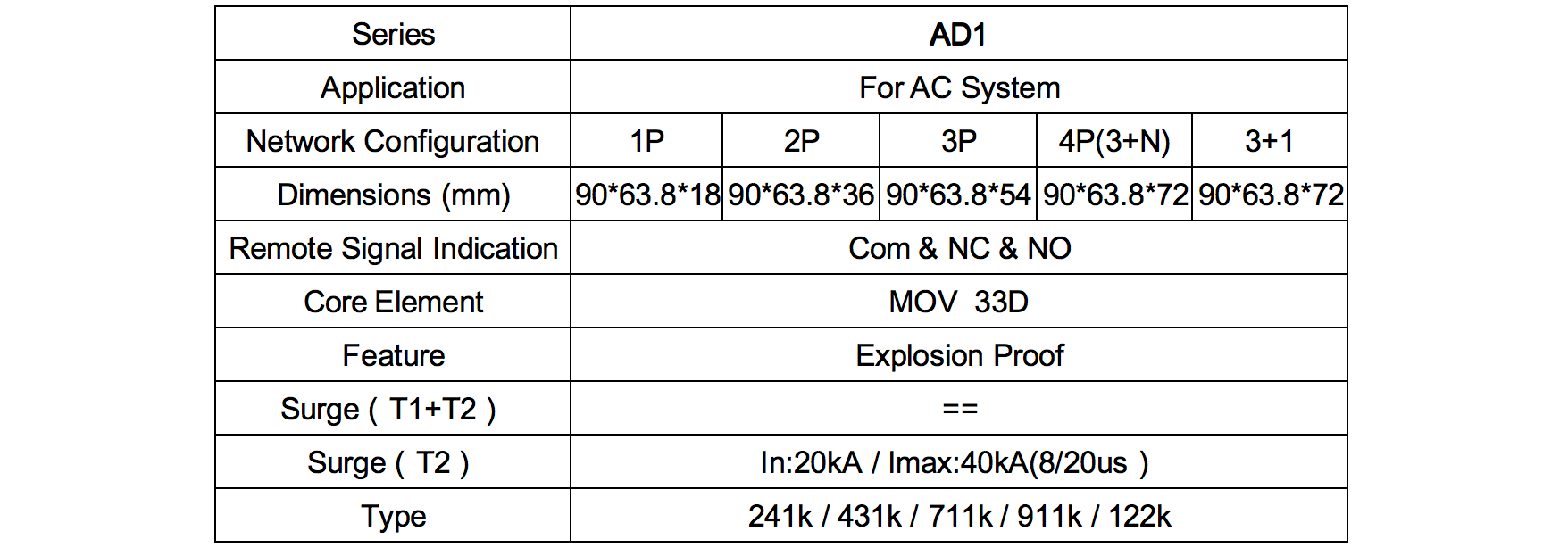

2. Product Specifications

D1 Specs.png

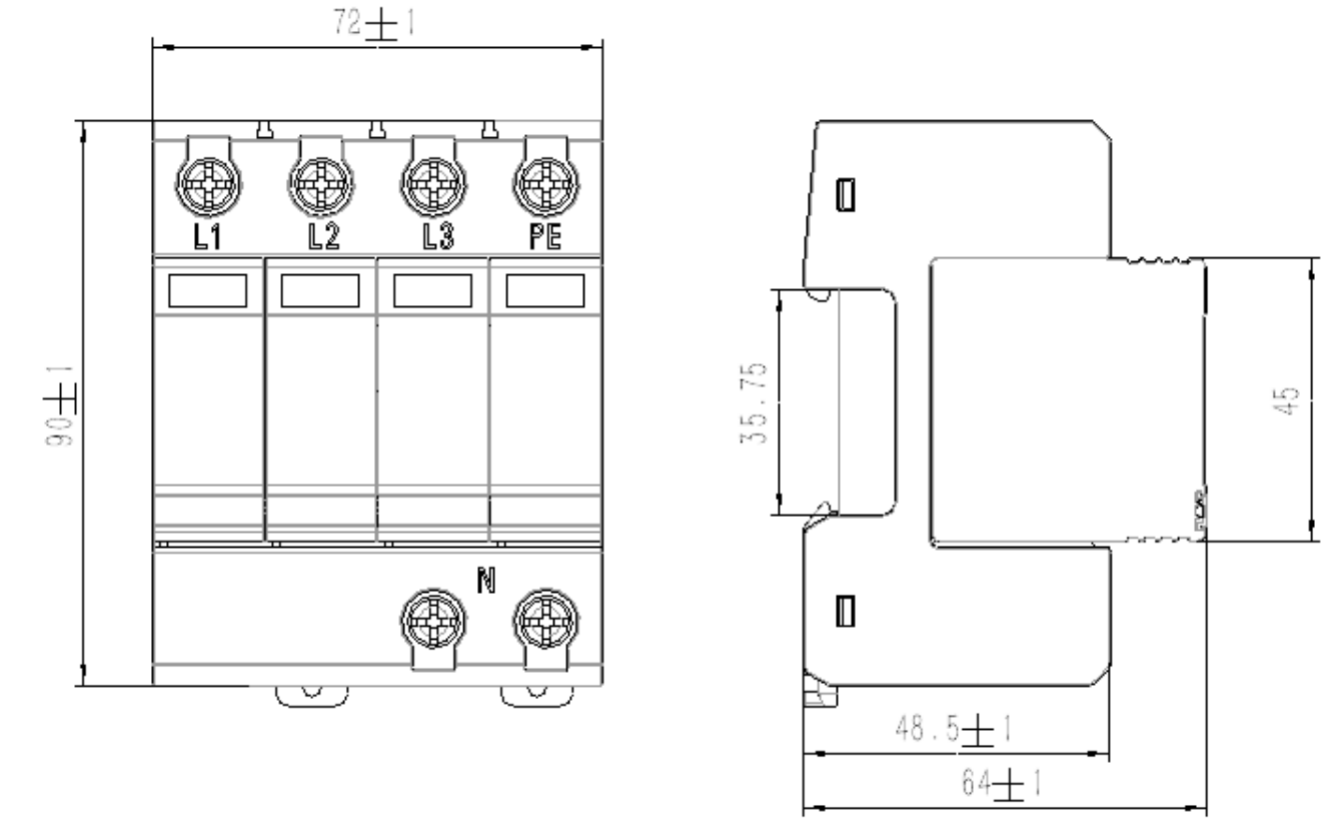

3. Dimensions

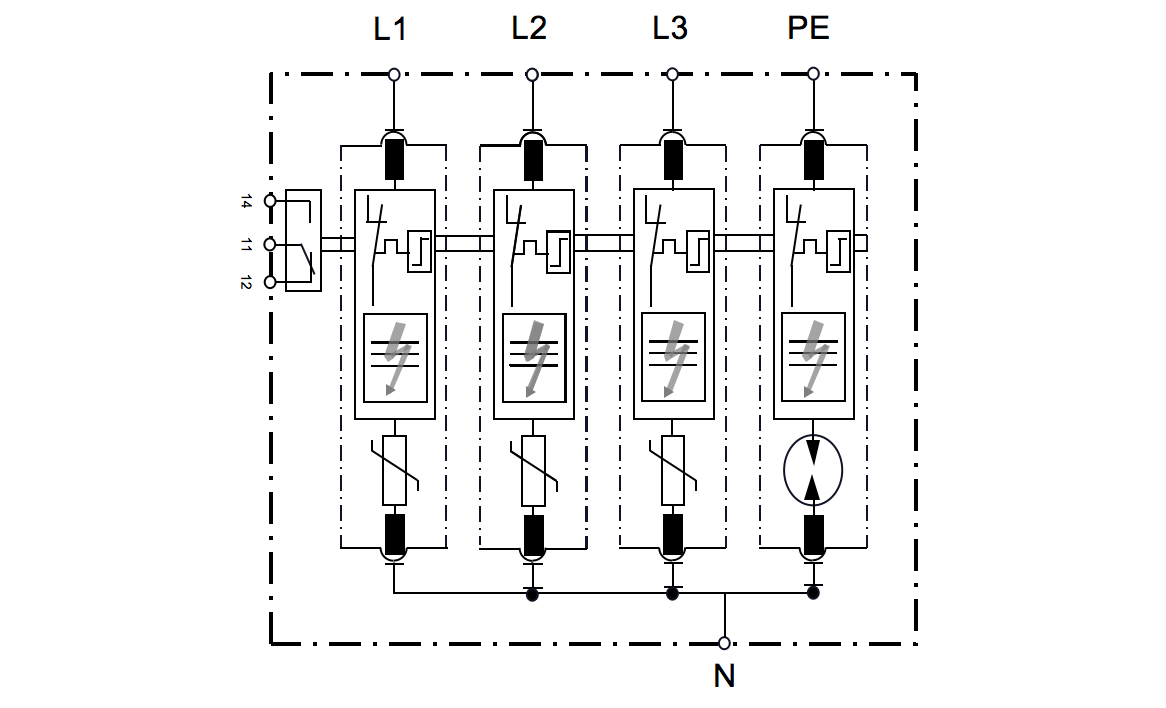

4. Schematic Diagram
