Product classification

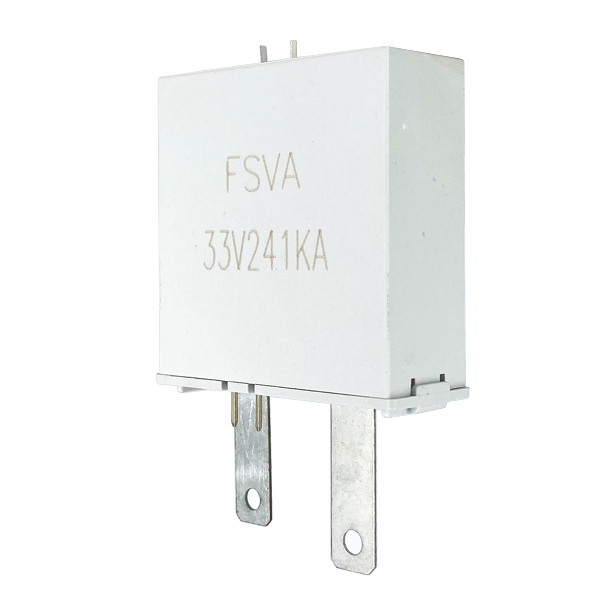

FSVA Series

FSVA Series

50Vac - 550Vac 65Vdc - 745Vdc Surge: 60kA 8/20us Peak Current Rating Operating Temperature: -40oC to +85oC UL Certified ✔ CUL Certified ✔

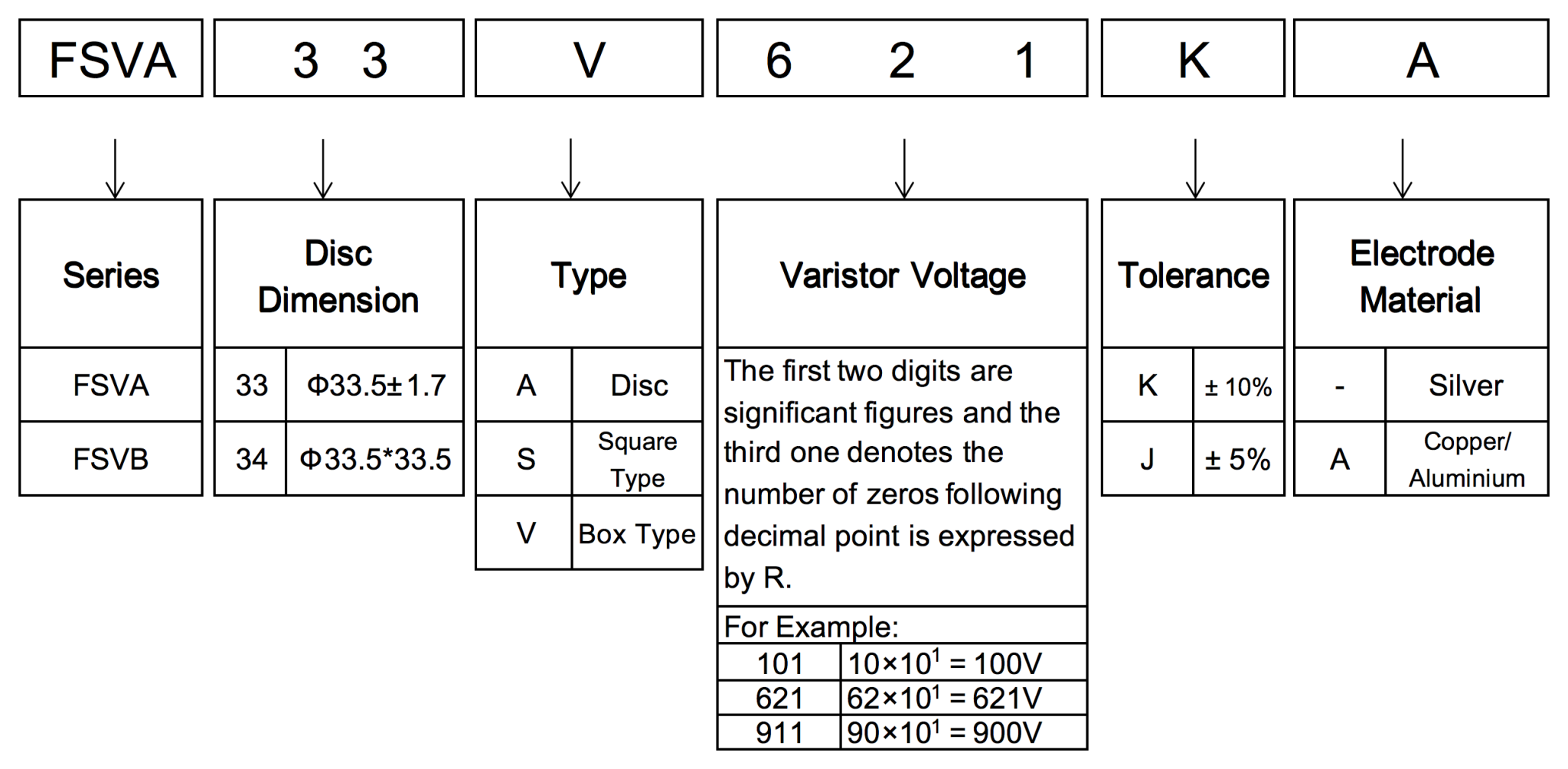

1. Part Number Code

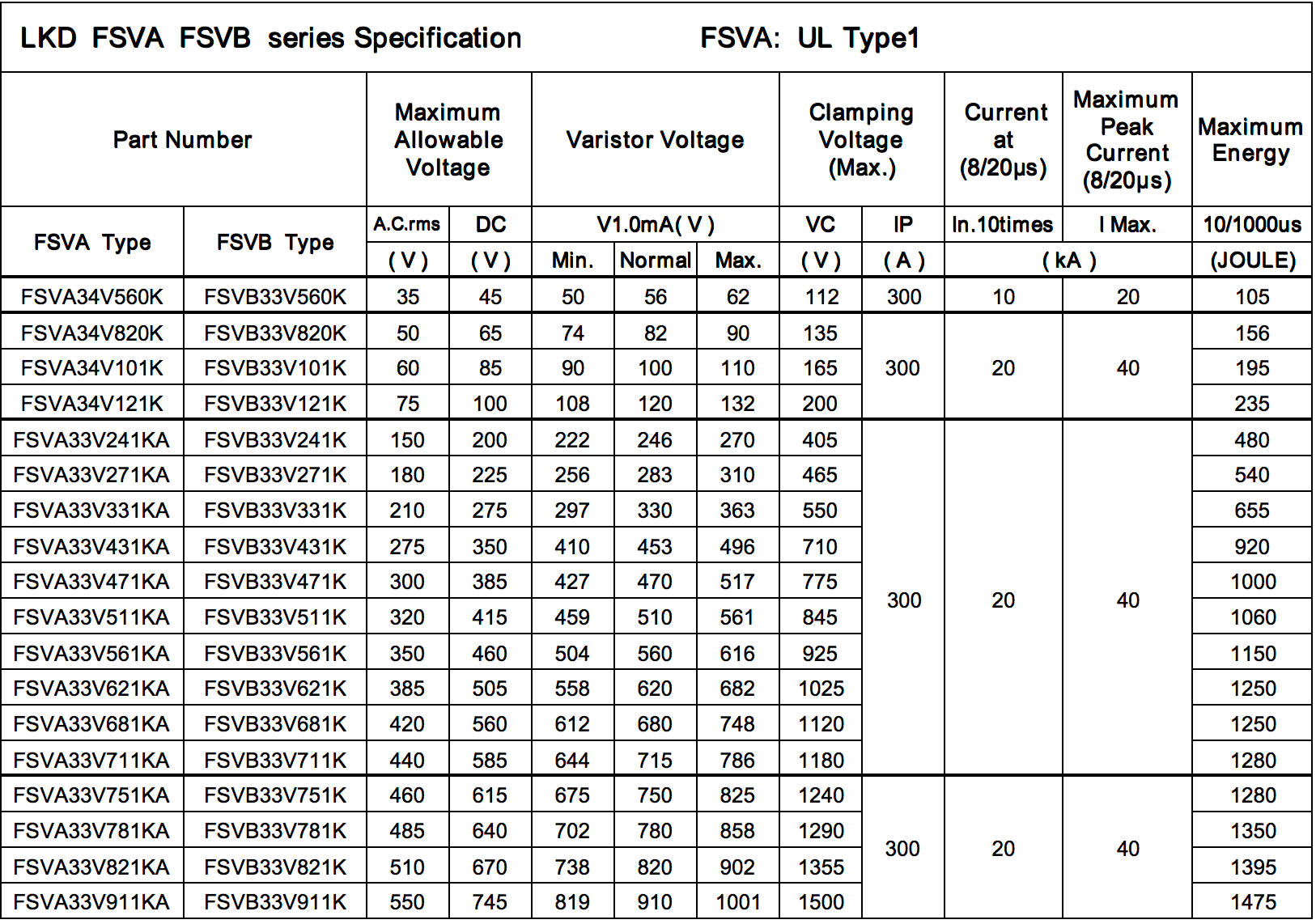

2. Product Specification

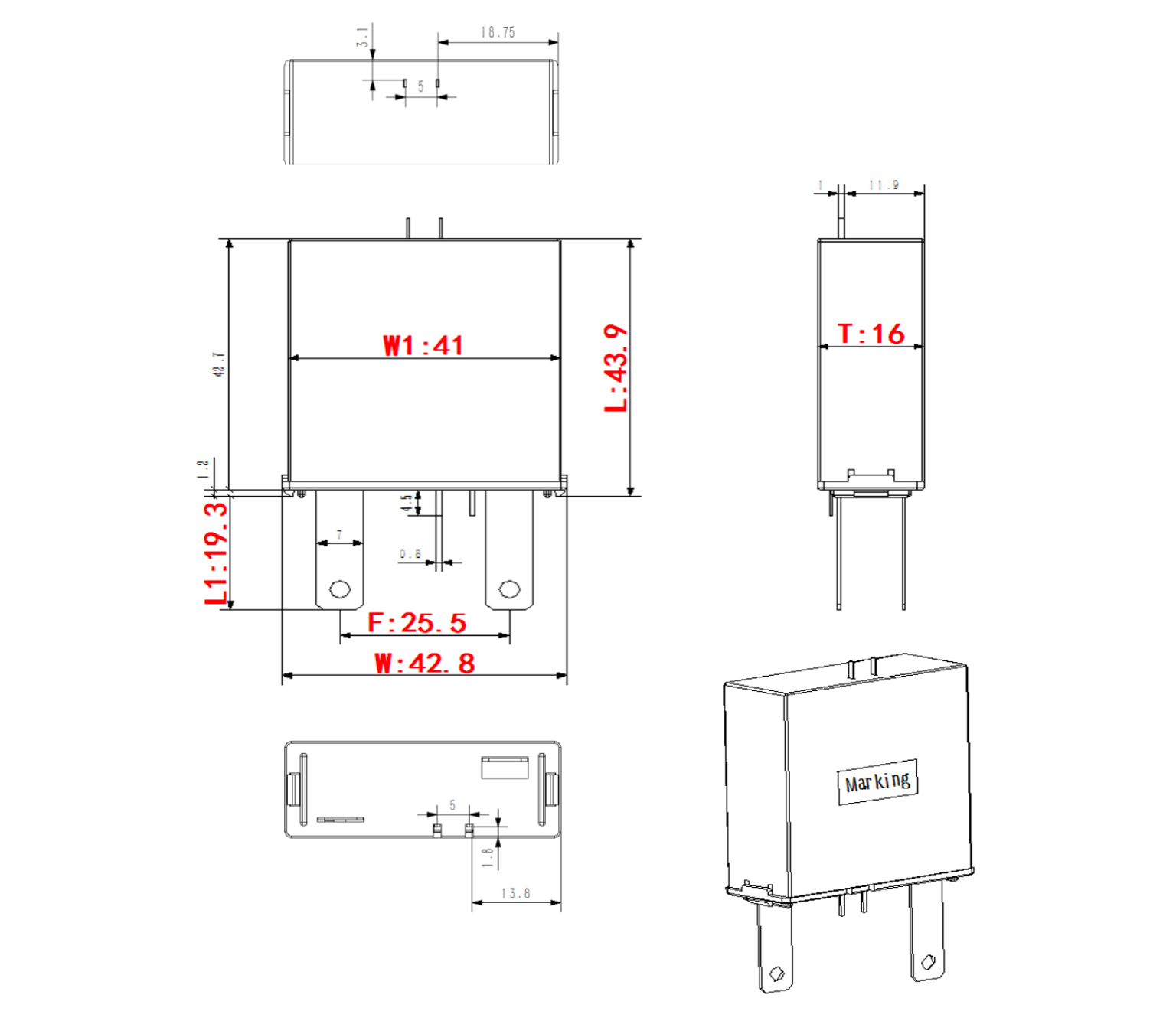

3. Product Dimensions

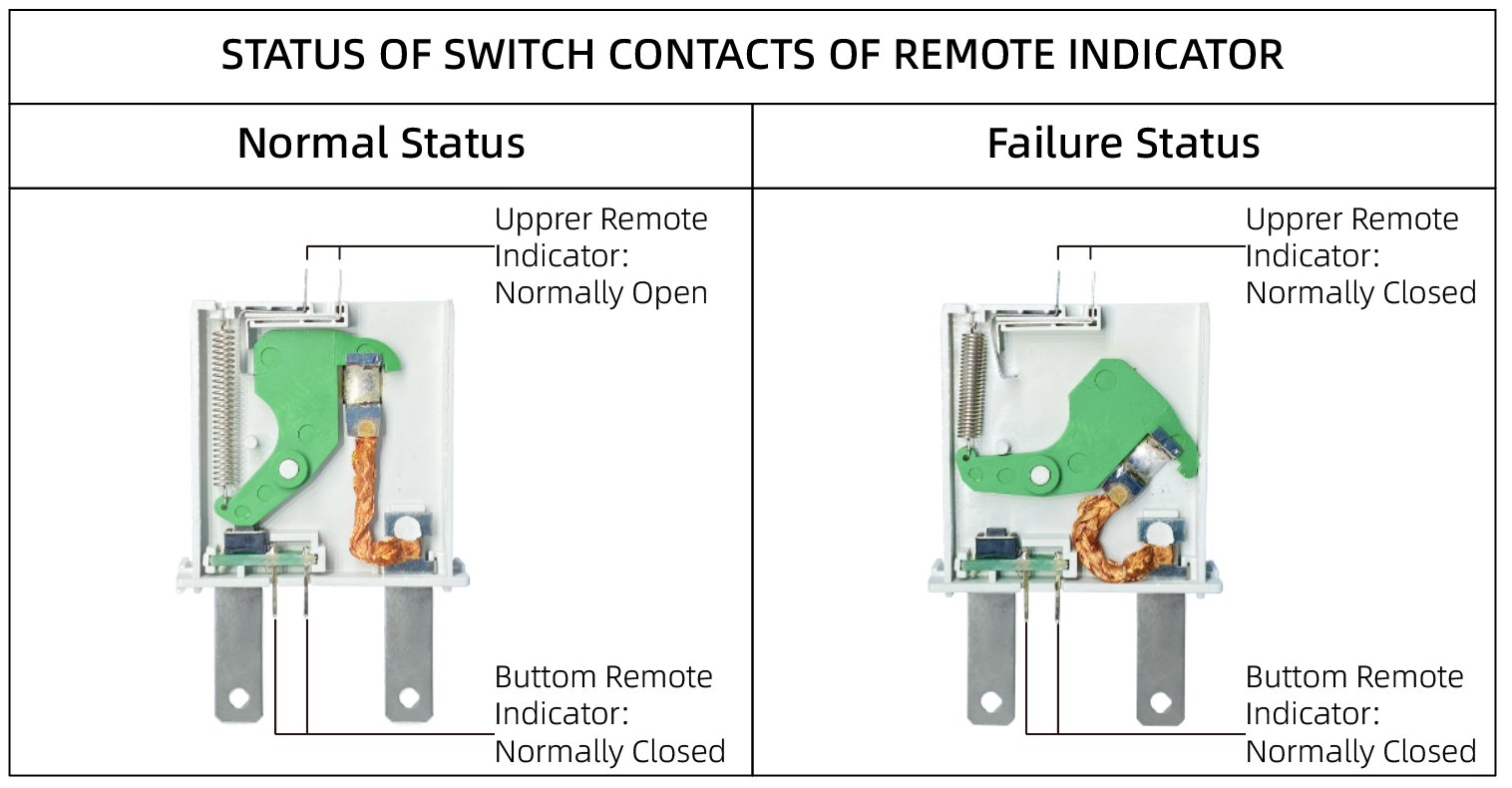

4. Status of Switch Conctacts of Remote Indicator
